Brightness Matters
The brightness requirements for outdoor LED displays vary depending on the location, orientation, and purpose of the display. Generally, outdoor LED displays need to be brighter than indoor LED displays to be visible in daylight and compete with the sun. According to some sources, the common brightness requirements are as follows:
Sunlight Readable Outdoor LED Display
Sunlight readable displays are designed to be viewable in high ambient light conditions, including direct sunlight. Standard displays often struggle in such environments because the brightness of the sun greatly surpasses that of the display, causing the images on the screen to appear washed out due to strong reflections. Sunlight readable displays address this issue by offering higher brightness levels and employing technologies to minimize glare and reflections, enhancing visibility and readability even under intense sunlight. This makes them ideal for outdoor use, such as in digital signage, public transport displays, or any application where the display needs to be clearly visible in bright conditions.
| Location | Condition | Nits |
| Indoor | Room lighting | 800-1500 |
| Indoor | Direct sunlight | 1500-2500 |
| Outdoor | under roof | 2500-4000 |
| Outdoor | Sunset ( north-facing) | 4000-5500 |
| Outdoor | Direct sunlight | 6000-7000 |
| Outdoor | low latitude Area; Africa;South America | 7000-10000 |
SUPER HIGH BRIGHTNESS LED DISPLAY
Outdoor LED Screen up to 10000nits Ultra High brightness
main features
Waterproof
IP65 cabinet / IP 68. modules
Super Bright
Super Bright LED up to 10000 nits
Durable
Durable gold wire LED
Outdoor LED Screen
Video Facade
Billboard
Street Furniture
Ultra High Brightness
With a great brightness of 10,000 nits, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility under strong sunlight

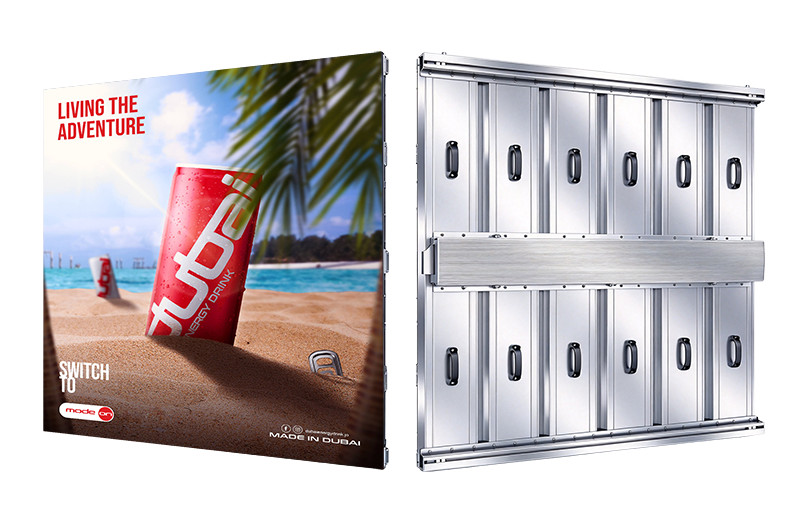

6063-T5 extruded aluminum
6063-T5 extruded aluminum provides better heat dissipation and toughness. It can be made into curved cabinets with double-layer hollow heat insulation, perfect for hot-climate outdoor projects. ADC12 die-cast aluminum is harder yet brittle with poorer thermal performance, only suitable for flat indoor rental screens.
| Comparison | 6063-T5 (Extruded Aluminum Profile) | ADC12 / A380 Die‑Cast Aluminum |
|---|---|---|
| Thermal Conductivity | 209 W/m·K, excellent heat dissipation | Approx. 95~110 W/m·K, noticeably lower thermal conductivity, weaker heat dissipation |
| Hardness | 60HB, good toughness, bendable, resistant to cracking | 80~90HB, higher hardness but brittle; easy to crack under impact, cannot be bent for curved shapes |
| Molding Method | Extrusion. Supports long profiles, double-layer hollow structures and custom curved cabinets | High-pressure die casting. Only for flat cabinets fixed by molds; bending for curved shapes is impossible |
| Structural Capability | Enables double-layer hollow heat insulation & airflow channel design for thermal management | Solid / thin shell structure; difficult to implement double-layer hollow insulation structure |
| Corrosion Resistance | Anodized finish, great weather resistance for outdoor use | Porous structure prone to moisture trapping; easier to oxidize and corrode under long-term outdoor exposure |
| Application Scenarios | Outdoor large screens, curved screens, custom special-shaped screens, projects in high-temperature environments | Indoor rental screens, standard flat cabinets for frequent assembly & disassembly |

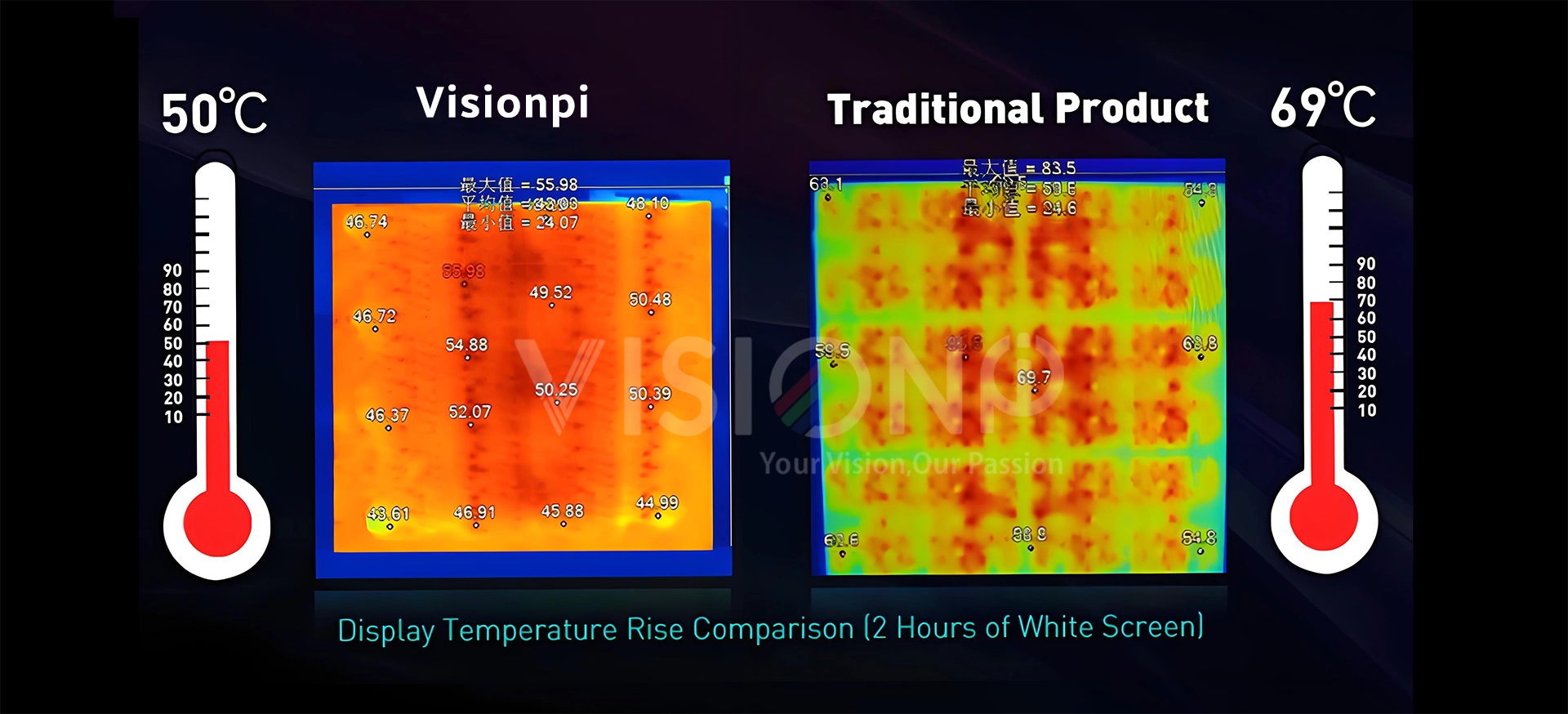

Natural Cooling
The dual-chamber aluminium LED cabinet uses an outer layer to block solar heat, while the inner aluminium layer contacts the PCB and ICs directly via thermal glue. Hollow diversion cavities use air convection to dissipate heat evenly, ensuring stable operation for outdoor curved LED displays in high temperatures.
IP65 Rating Module
Aluminum die-casting LED module housing for IP68 rating protection and natural cooling without any ventilation and aircon 7000 – 9000 nits high brightness,1:5000 contrast ratio average 120-150W energy-saving power consumption
Convex&Concave
With a narrow 160 mm module width, much smaller than the common 250 mm, 320 mm, and 480 mm modules widely used in the industry, our curved LED display achieves remarkably smooth and even arc transitions at the same curvature radius. The slim module minimizes the segment gap, forming continuous, natural curved-surface LED video wall.

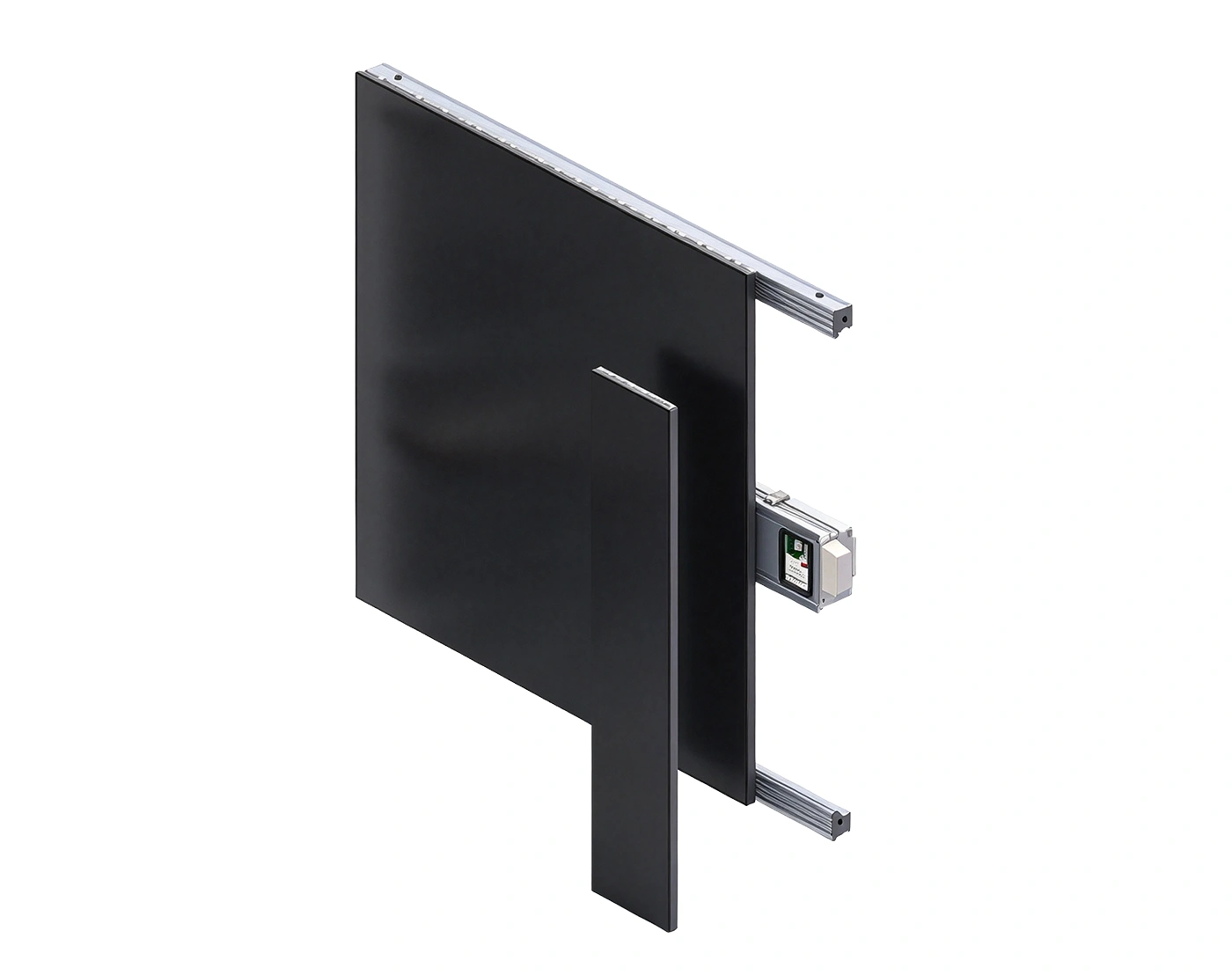

Front Service
| Product Name | P2.5 | P3.076 | P4.4 | P 5 | P 5.9 | P6.67 | P8 | P10 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD192 | SMD192 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4.4 | 5 | 5.926 | 6.667 | 8 | 10 |
| Pixel matrix per panel | 64×256 | 52×208 | 36×216 | 32×192 | 27×162 | 24×144 | 20×120 | 16×96 |
| Cabinet Dimensions(mm) | 960X640X94 | 960x640x95 | 960x960x97 | |||||
| Refresh Rate(Hz) | 3840-7680 | |||||||
| weight(kg/m2) | 19.5±2 | 27±2 | ||||||
| Brightness (nits) | ≥5000 | ≥6000 | ≥6000 | |||||
| Horizontal / Vertical Viewing Angle | 140/140 | |||||||
| AC Input Power Maximum/Average | 650/210 | 600/200 | ||||||
Outdoor LED Display Installatoin
Experience unparalleled visibility with our Super High Brightness Sunlight Readable LED Display. Designed to perform in the brightest conditions, this display ensures your content remains vivid and clear even under direct sunlight. Perfect for outdoor events, digital signage, and public displays, our high brightness LED technology guarantees maximum impact and audience engagement.
Don’t let sunlight dull your message. Upgrade to our Super High Brightness Sunlight Readable LED Display today and make sure your visuals shine bright, no matter the conditions!
