High-temperature Resistant LED Display

Jun 17, 2024 | General | 0 comments

High-temperature conditions are among the most common and influential environmental challenges for outdoor LED screens. Long-term exposure to direct sunlight and high ambient temperatures will continuously accumulate heat within the screen body, affecting the equipment’s operating performance and service life. Reasonable heat-dissipation design and daily maintenance are essential to ensure the stable operation of outdoor LED screens under high-temperature conditions. This article objectively analyzes the impact of high temperatures on outdoor LED screens and introduces practical heat-dissipation principles, mainstream solutions, structural design, material selection, and daily maintenance guidelines.

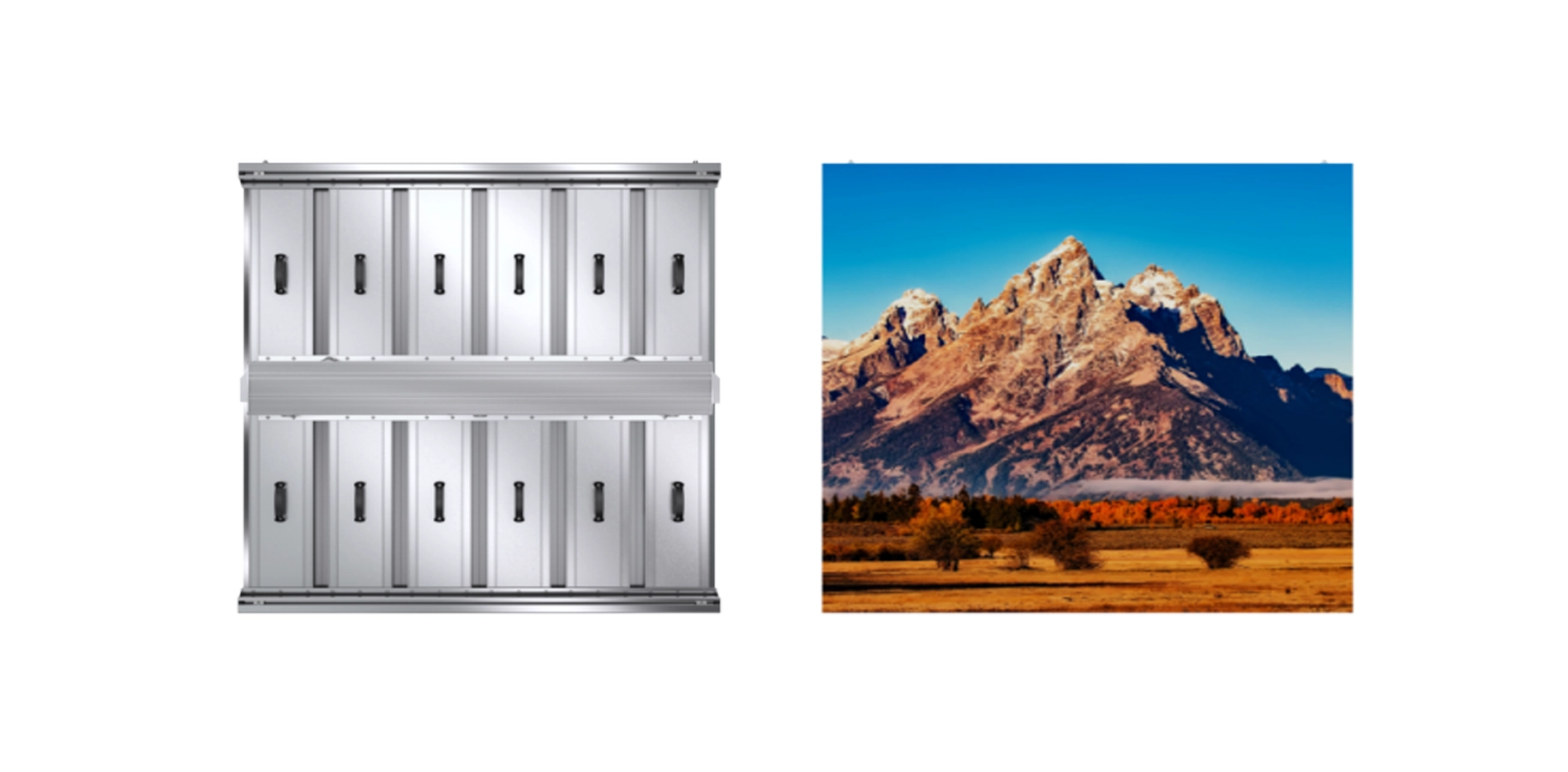

outdoor hd front service led display
Table of Contents
;
3

Impacts of High Temperature on Outdoor LED Screens

Outdoor LED screens are composed of precision electronic components, which are highly sensitive to ambient temperature. Continuous high temperature will cause a series of stable operation problems for the equipment.

First, high temperature reduces the working performance of core electronic components. The luminous efficiency of LED chips will decrease significantly in high-temperature environments, resulting in insufficient screen brightness, color deviation, and uneven display. The original clear and vivid display effect will become dim and blurred.

Second, long-term high temperature operation accelerates the aging speed of internal components including power modules and drive chips, greatly shortening the overall service life of outdoor LED screens. According to industry statistical data, the failure rate of outdoor LED screens working in an environment above 35°C is about 30% higher than that in normal-temperature environments.

In addition, poor heat dissipation in high-temperature weather will cause continuous heat accumulation inside the screen body. If the internal heat cannot be dissipated in time, it will easily lead to common faults such as loose welding points and circuit short circuits. These faults will directly affect the normal display function of the LED screen and cause unnecessary economic losses for users.
Fire resistant fire-proof outdoor LED display panel, high brightness waterproof LED screen for building facade, commercial billboard

Professional Heat Dissipation System Design for Outdoor LED Screens

Screen Structure Optimization

Structural optimization is the foundation of efficient heat dissipation for outdoor LED screens, which can fundamentally improve internal air circulation.
First, reasonably set ventilation openings. Ventilation holes shall be arranged on the top, bottom, and side of the screen box to avoid ventilation dead angles. The area and quantity of ventilation openings need to match the screen size and heat generation. In conventional design, the ventilation area accounts for 5% to 10% of the total screen area, ensuring smooth air inlet and outlet.
Second, optimize the internal component layout. Place high-heat components such as power modules and drive chips close to ventilation openings to facilitate rapid heat discharge. Avoid excessive dense arrangement of internal components, and adopt layered or zoned layout to ensure unobstructed internal air flow.

Double-sided Outdoor LED Poster

  • Auto Brightness Control

    A built-in light sensor automatically adjusts screen brightness based on ambient light, optimizing the advertising viewing experience.

  • Aluminum Alloy Base Heat Dissipation

    An integrated aluminum base delivers passive self-cooling & high temperature resistance and stable operation under high heat.

  • All-Weather Outdoor Adaptability

    Works reliably in harsh weather; no auxiliary cooling needed under natural ventilation.

  • 304 Stainless Steel Carry Handle

    Equipped with a corrosion-resistant 304 stainless steel handle for easy transportation, cleaning, and routine maintenance.

-20℃ to 60℃ wide temperature range outdoor LED display, high brightness waterproof outdoor LED screen

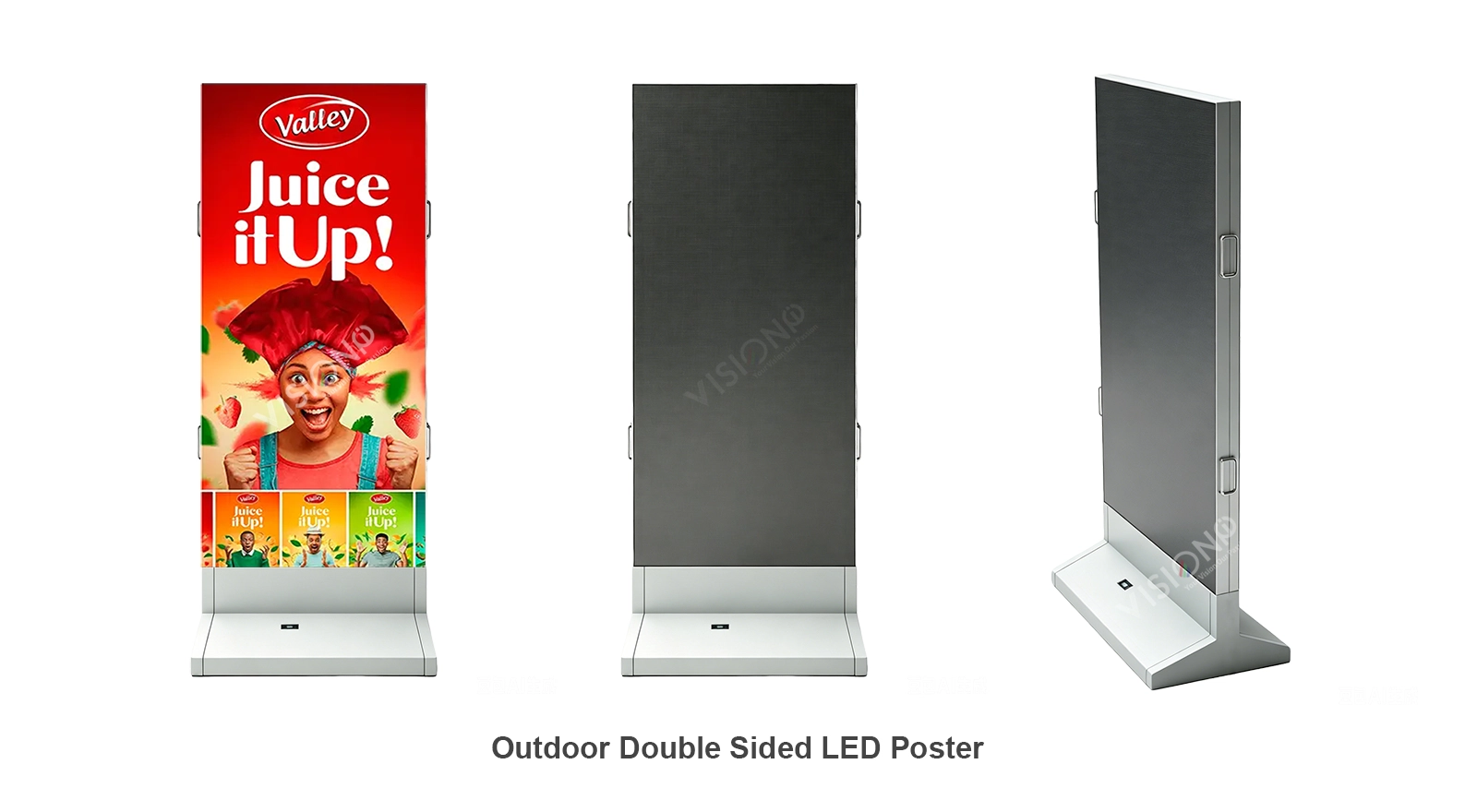

Outdoor double-sided LED kiosk, P2.5 P3 outdoor LED poster display, waterproof dual-sided digital advertising screen

Integrated Heat Dissipation System Matching

A single heat dissipation method has limited effectiveness in extremely high-temperature conditions. Integrated matching of multiple heat-dissipation solutions can significantly enhance the high-temperature resistance of outdoor LED screens.
The combination of a heat sink and a fan is the most widely used integrated solution. Passive heat conduction of heat sinks complements active air convection from fans, quickly removing heat from high-power heating components and meeting the heat dissipation requirements of most outdoor LED screens during high-temperature seasons.
For core precision components, a heat pipe and a heat sink are used in combination. The heat pipe quickly transfers concentrated heat to the heat sink, and the heat sink dissipates it evenly to the outside, preventing local overheating of LED chips and ensuring stable display performance under high-temperature conditions.

The intelligent heat dissipation control system is an advanced matching scheme. It can monitor the internal temperature of the outdoor LED screen in real time and automatically adjust the fan’s operating speed and state based on temperature changes. It can reduce fan noise at low temperatures and start full-power heat dissipation at high temperatures, realizing precise and energy-saving heat dissipation control.

Selection of Heat Dissipation Materials for Outdoor LED Screens

Heat Sink Material

Aluminum alloy is the mainstream material for LED screen heat sinks, with a thermal conductivity of 100-200W/(m·K). It balances thermal conductivity, weight, and cost and can fully meet the daily heat dissipation needs of most outdoor LED screens. Copper material has a higher thermal conductivity of 380-400W/(m·K), but it is heavier and more costly, so it is only used for high-power equipment with ultra-high heat dissipation requirements.
LED display receiving card aluminum heat sink, professional heat dissipation cooling solution for LED screen control receiving card, high efficiency thermal dissipation module

Adopt heat insulation flow guide cavity structure to strengthen air convection, which can quickly take away heat and isolate high temperature to avoid adverse impacts on the luminous panel.

Thermal Silicone Grease

Thermal silicone grease is used to fill the gap between heating components and heat sinks, with a thermal conductivity of 0.8-3.0W/(m·K). It effectively reduces thermal resistance between contact surfaces, improves heat conduction efficiency, and has good insulation performance. An even coating of thermal silicone grease during installation is essential to ensure the heat dissipation effect of the heat sink.

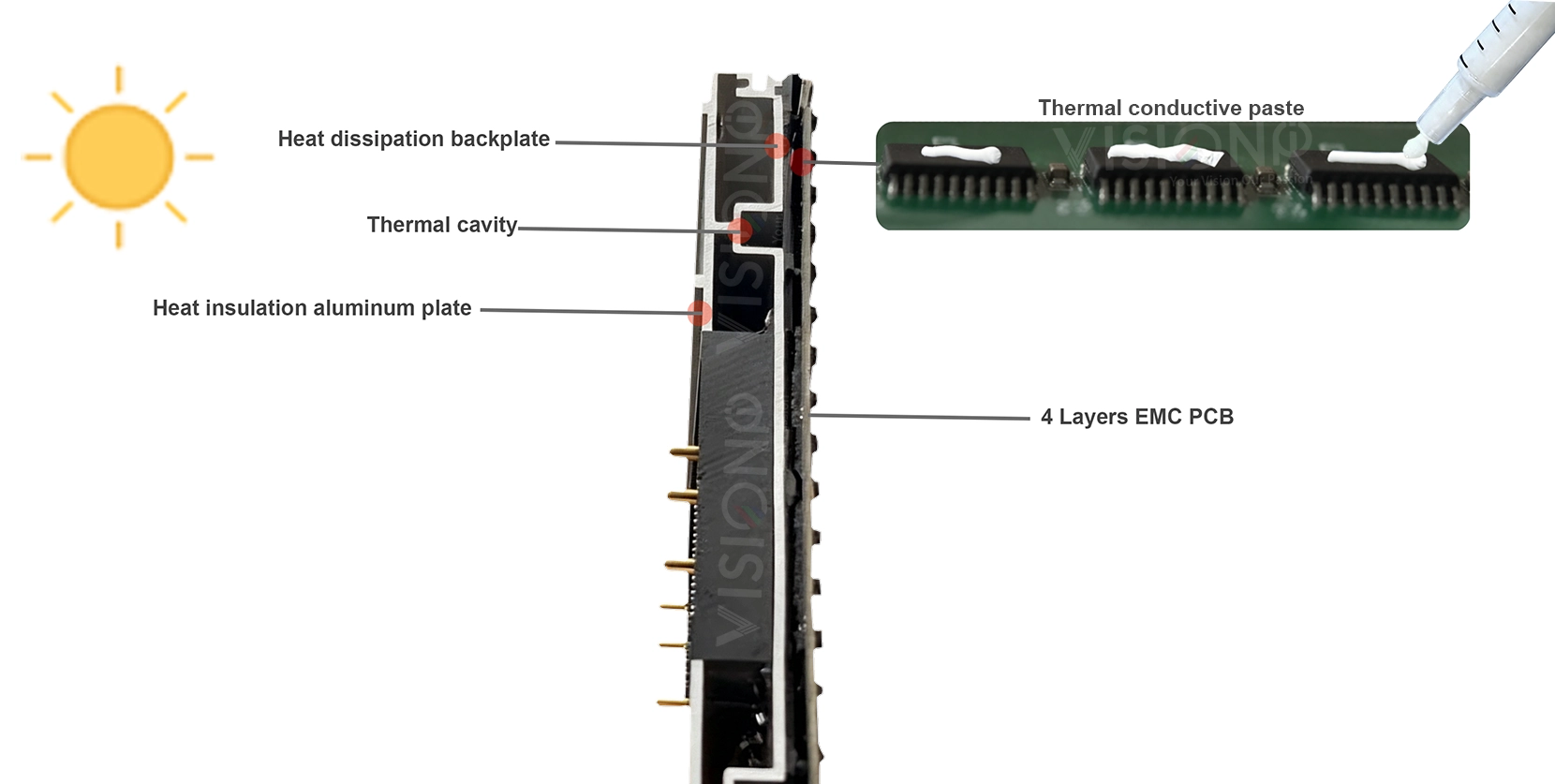

Outdoor LED display thermal management solution, aluminum heat sink structural design with thermal conductive glue paste for PCB receiving card heat dissipation

EMC Circuit Design

Adopt a highly integrated modular structure with a fanless, silent design. Equipped with a heat-cavity active-convection cooling system, no auxiliary air-conditioning cooling is required. Effectively solves the color-block issue encountered during white-balance calibration.

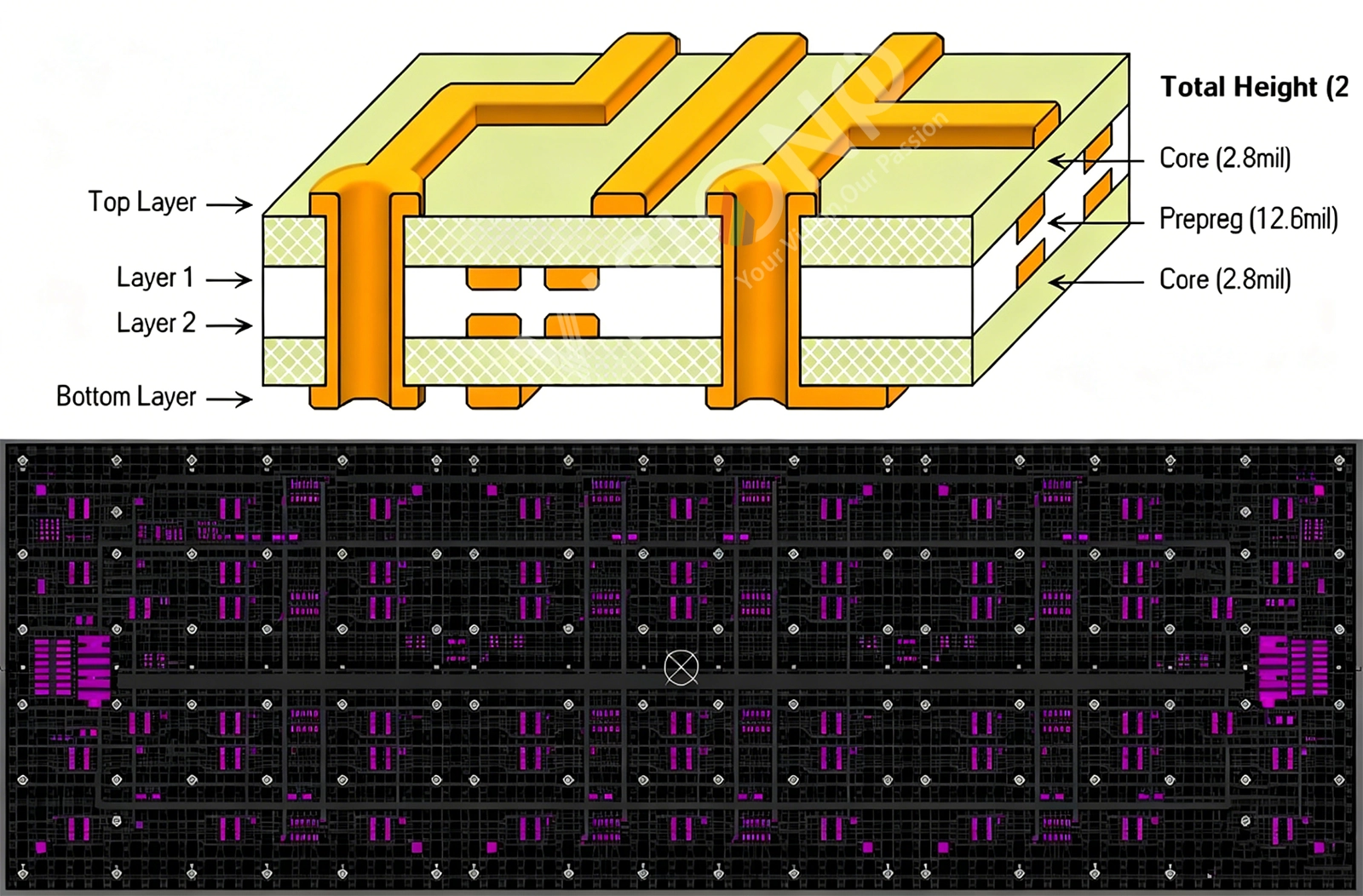

4-layer high-density circuit layout, surrounding copper shielding structure integrating power ground & chassis ground for improved shielding performance, built-in RC filter circuit design

A. This board features a 4-layer high-density layout and routing structure. It is equipped with an independent ground layer for shielding and EMC circuit design and externally connected to PE protective earth to greatly improve shielding capacity. The power layers are arranged in a fishbone pattern with widened and thickened copper traces to cut down internal voltage drop, making the product fit for low-voltage energy-saving scenarios. All outer pads are structurally reinforced to resist collision and abrasion damage.

B. Copper components are arranged around the PCB to integrate power ground and shell ground into a whole, effectively boosting electromagnetic shielding capacity.

C. Equipped with an independent RC filter circuit to suppress signal interference.

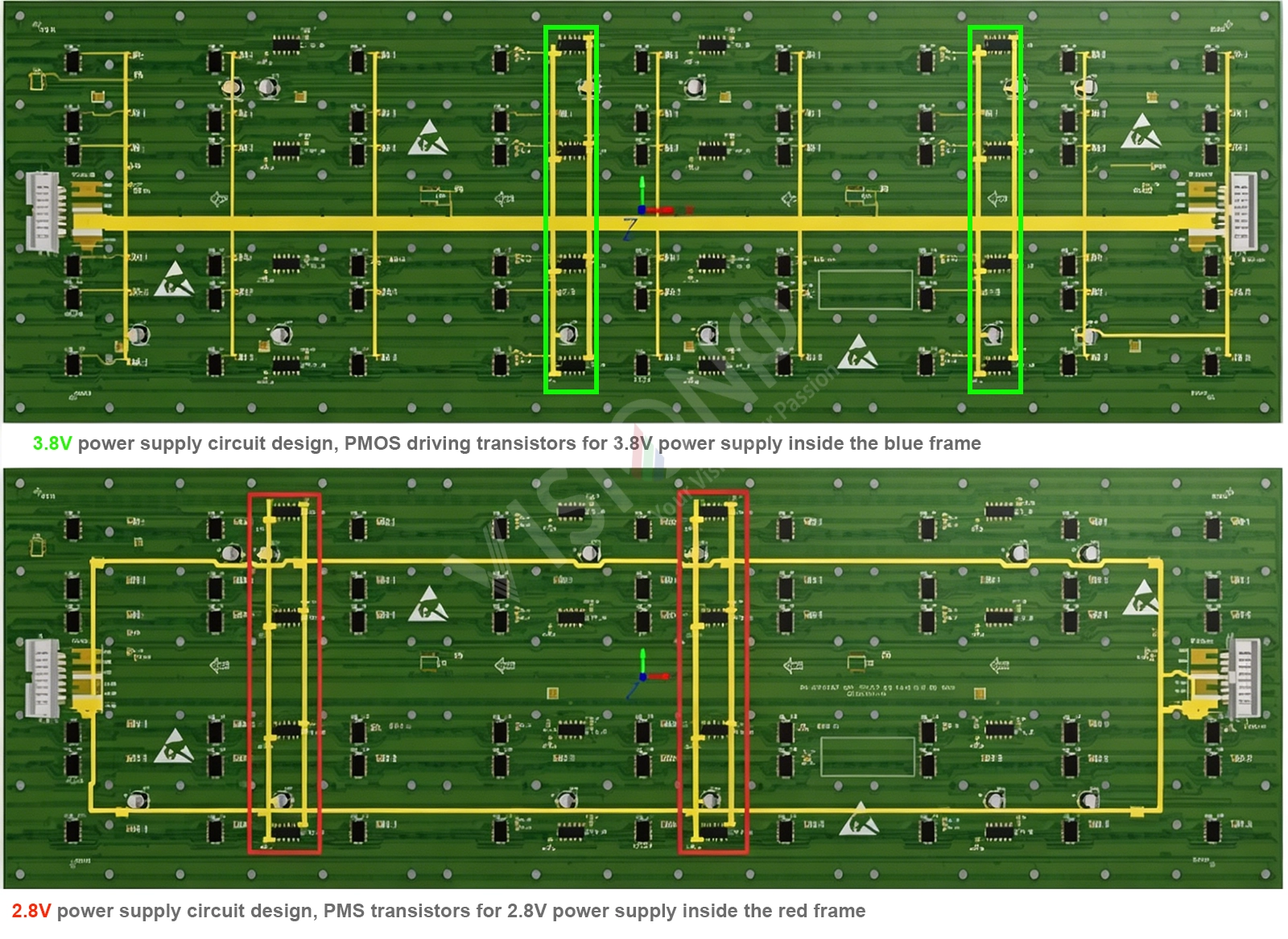

energy-saving LED display, dual independent circuit design, separate RGB power supply

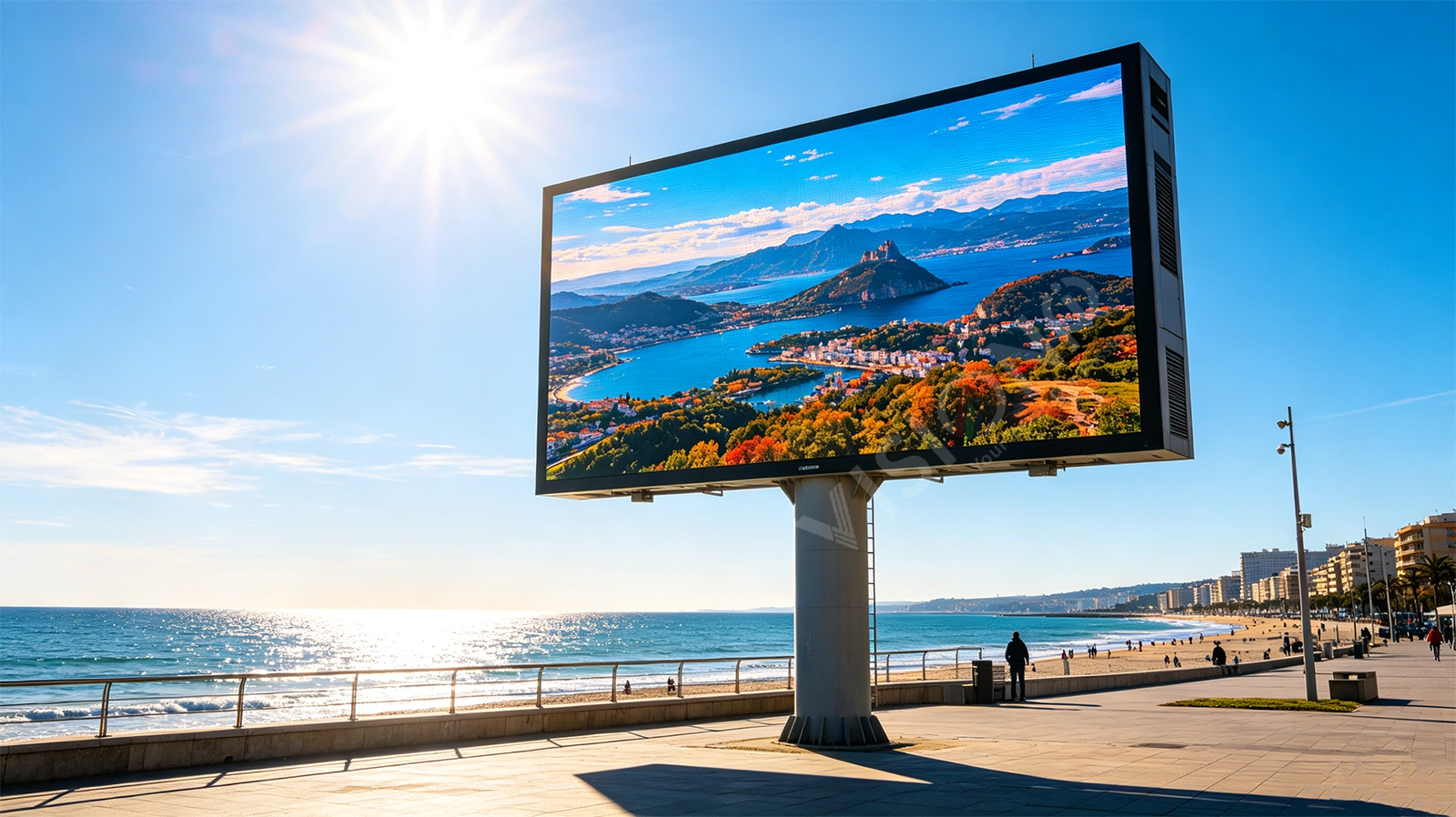

Coastal outdoor column LED display, anti-corrosion salt air, high brightness, 5-year warranty

Rugged Corrosion Resistance & Reliable Quality Assurance

  • Pure Aluminum Cabinet with Anodized Surface The display cabinet adopts full pure aluminum material with premium anodized surface treatment, delivering outstanding resistance to smoke corrosion and improving overall structural durability and surface wear resistance.
  • Strict Air Tightness Test & Salt Spray Isolation All cabinets have passed professional and stringent air tightness tests. The reliable sealed structure effectively isolates salt spray and humid corrosive air, preventing internal electronic components from corrosion and damage.
  • Corrosion-Resistant Surface-treated LED Lamps All original LED beads are equipped with professional anti-corrosion surface treatment, strengthening the protection capability of core light-emitting components and adapting to harsh humid and corrosive environments.
  • Coastal Area Adaptability & 5-Year Official Warranty Perfectly applicable to high-salinity coastal environments with severe salt spray erosion. We provide a worry-free 5-year official warranty for the whole product, fully guaranteeing long-term stable operation of the display screen.

Strict Air Tightness Test & Salt Spray Isolation.

All cabinets have passed professional, stringent airtightness tests. The reliable sealed structure effectively isolates salt spray and corrosive, humid air, preventing corrosion and damage to internal electronic components.

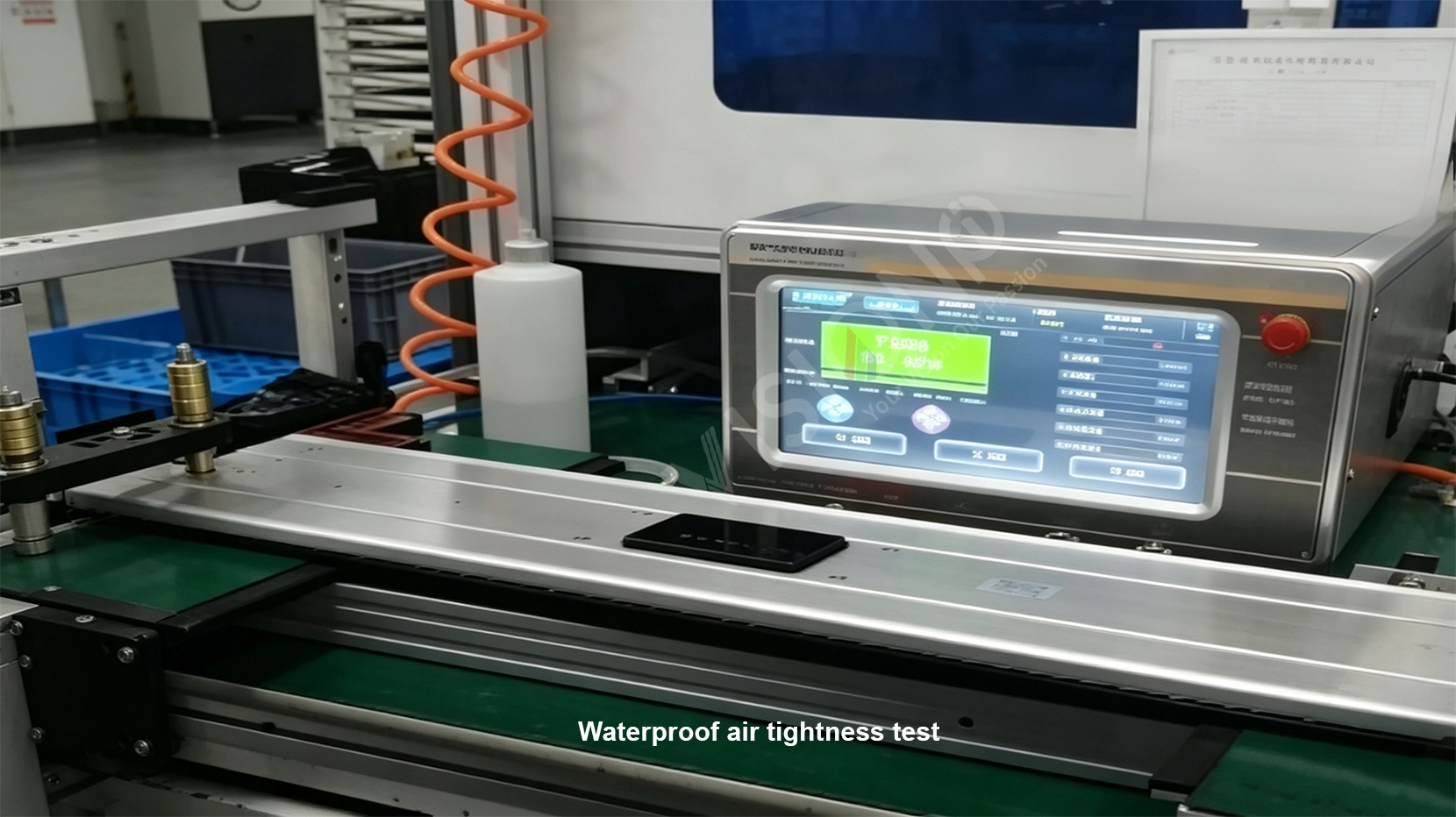

outdoor led display Waterproof air tightness test equipment, module leak detection pass

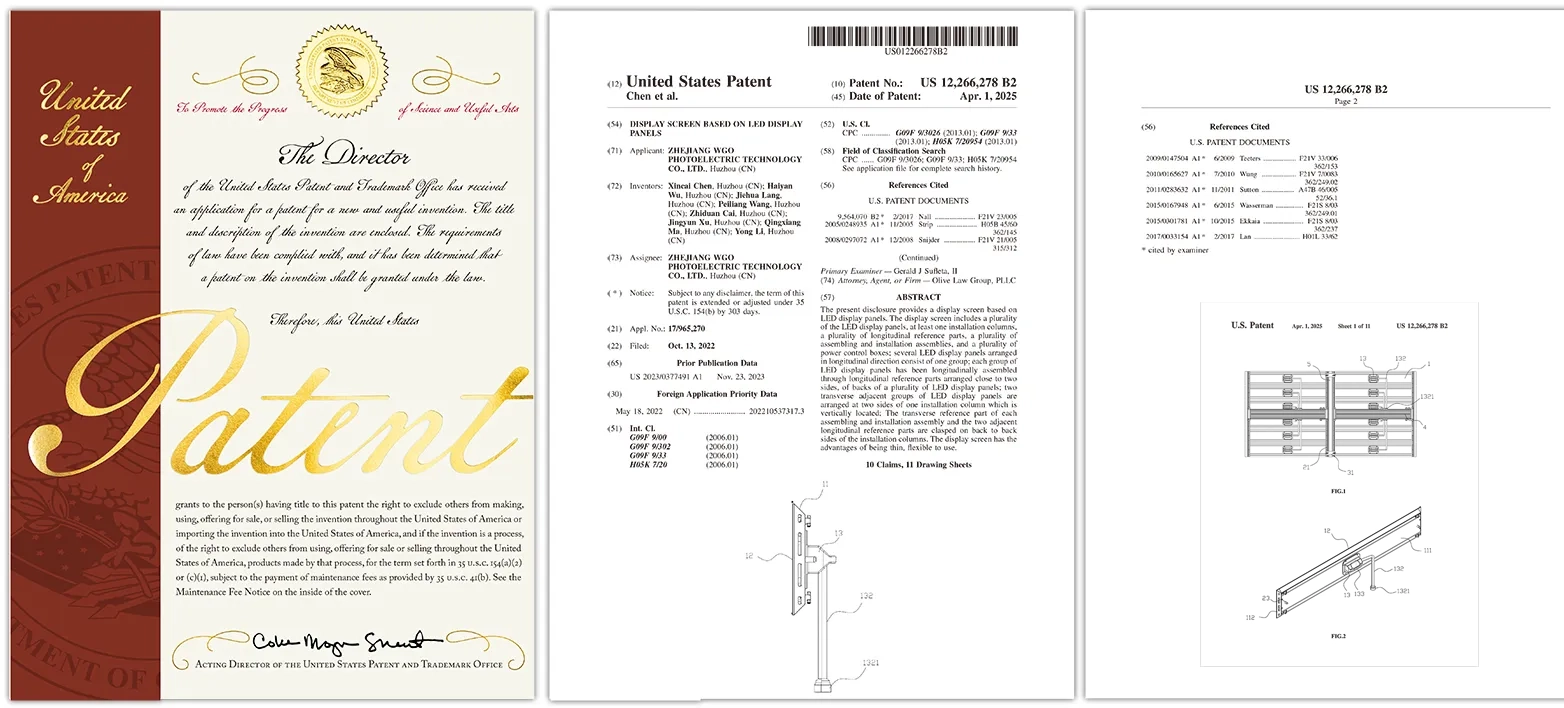

An LED display screen based on LED display panels has been granted a US Utility Invention Patent by USPTO

An LED display screen based on LED display panels has been granted a US Utility Invention Patent by USPTO

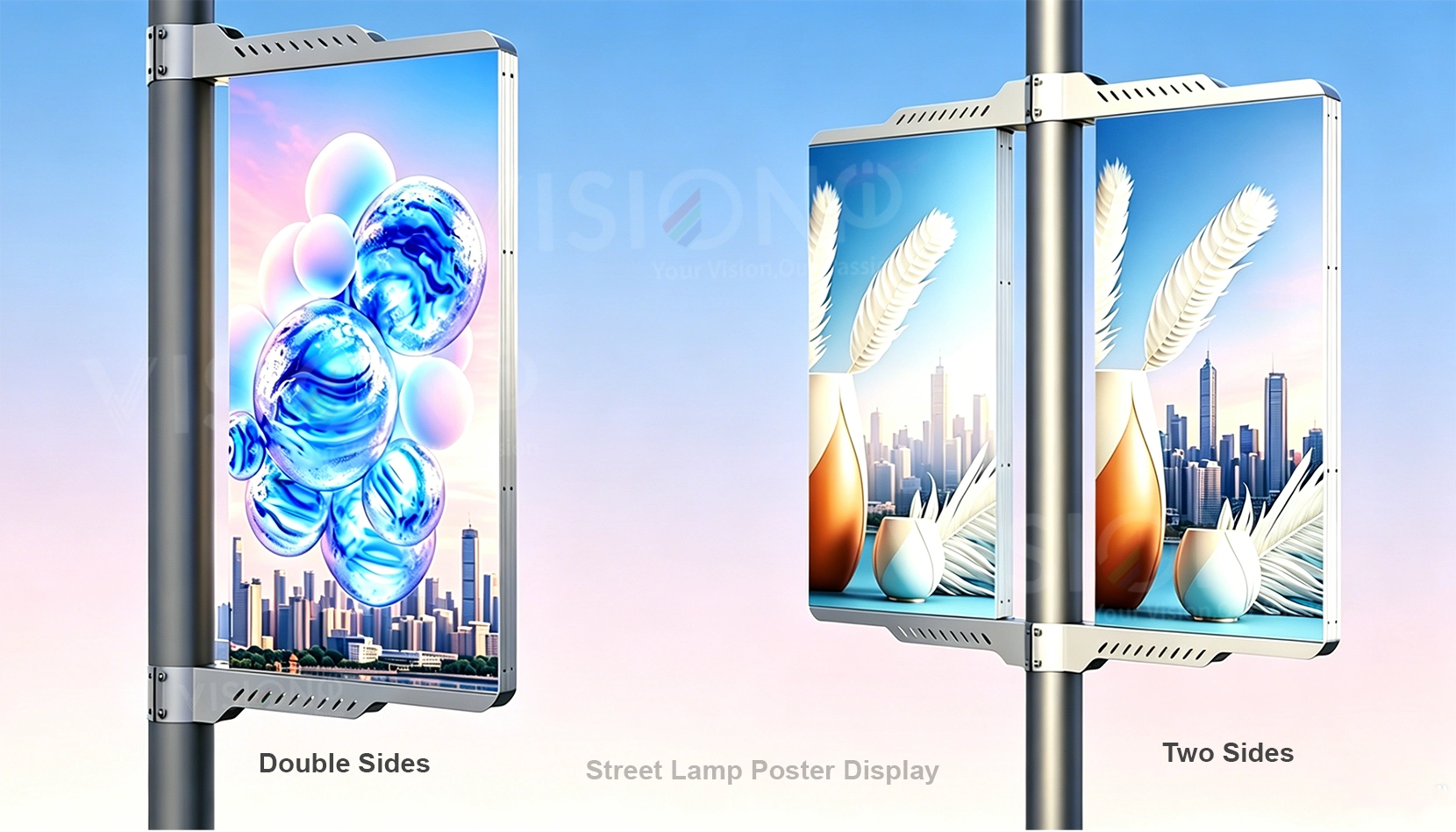

Street light LED poster screen, double-sided display, aluminum integrated heat sink structure, high temperature resistant outdoor advertising LED display
