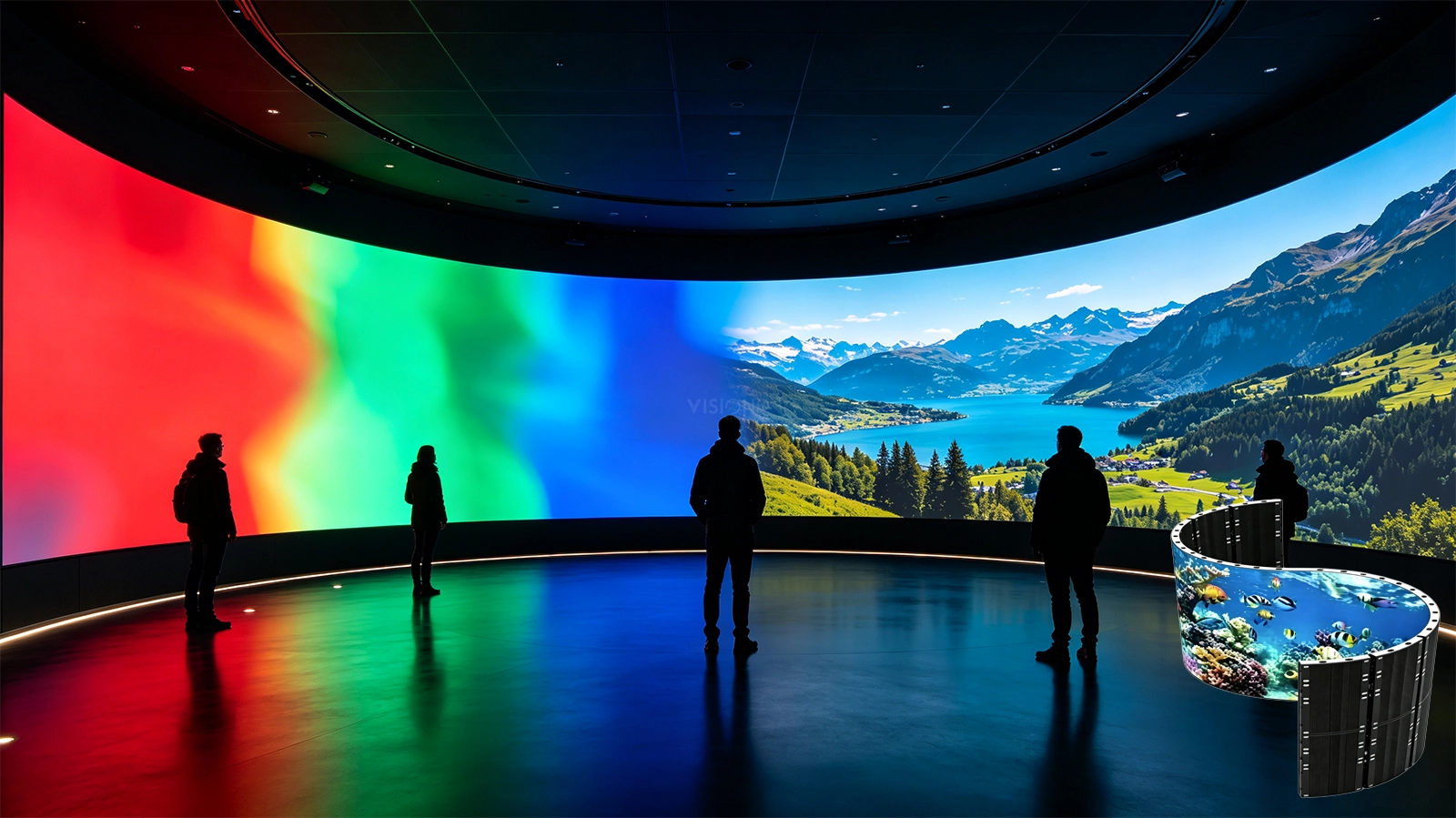

Curved Mip LED Display

CNC die‑casting aluminum cabinet

Built with CNC die-cast aluminum cabinets, our LED display supports fully customized structural solutions. The lightweight, slim‑profile design reduces the overall load for installation. High‑precision cabinet machining enables seamless splicing, delivering flat and smooth visual performance with minimal gaps between cabinets. Ideal for custom curved, immersive, and large-scale LED video‑wall projects.

16:9 Aspect Ratio

Base module dimensions: 300×168.75 mm.

Custom cabinet sizes available: 300×675 mm, 300×843.75 mm, and 300×1012.5 mm, supporting a range of project dimensions.

The lightweight cabinet design enables single-person installation for easy handling and setup.

Custom Concave & Convex

Supports both concave and convex curved installations with customizable curvature. Adopts a CNC die-cast aluminum cabinet for high‑precision splicing, achieving seamless joints and a perfectly smooth curved surface. Ideal for creative curved LED video wall projects, delivering consistent visual performance across concave and convex shaping requirements.

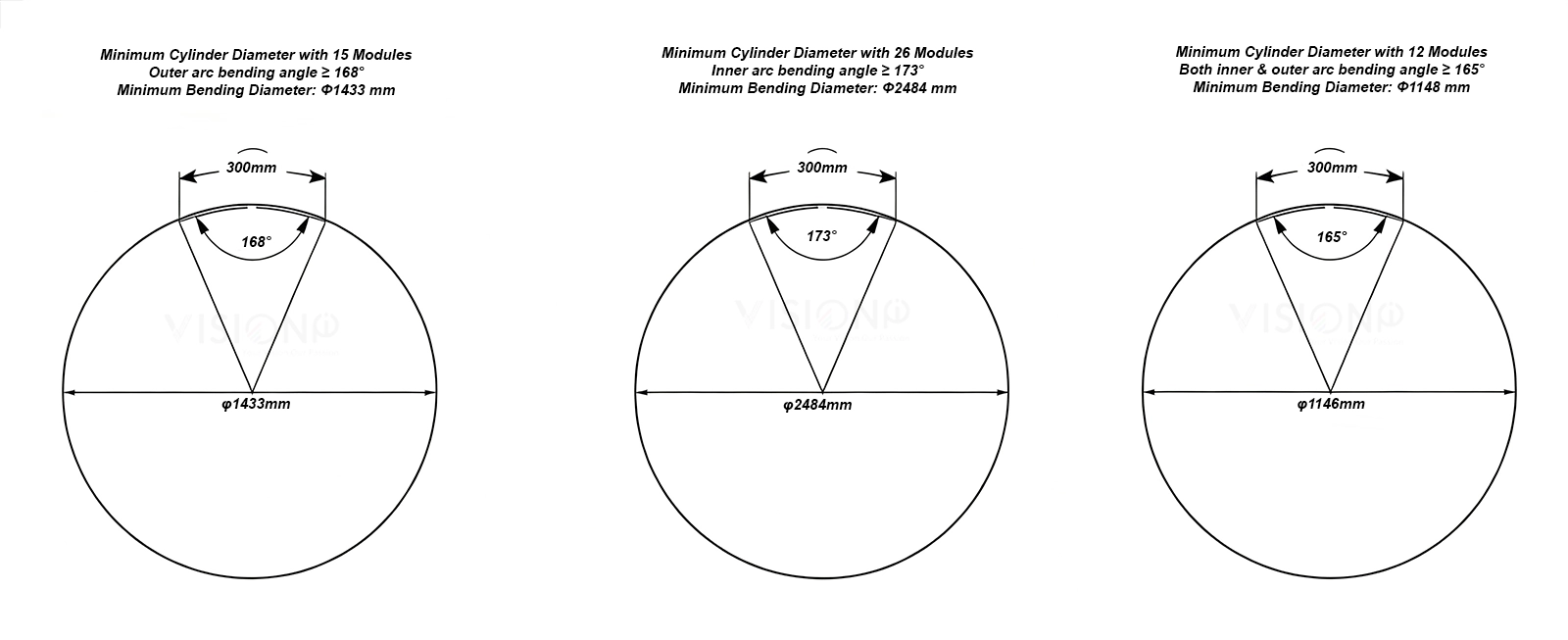

Flexible Module Minimum Cylinder Diameter

• Minimum Cylinder Diameter with 15 modules: outer arc bending angle ≥ 168°; Minimum Bending Diameter: Φ1432 mm
• Minimum Cylinder Diameter with 26 modules: inner arc bending angle ≥ 173°; Minimum Bending Diameter: Φ2484 mm
• Minimum Cylinder Diameter with 12 Modules Both inner & outer arc bending angles are ≥ 165° Minimum Bending Diameter: Φ1148 mm

Curved All-in-One LED TV

Explore flexible Micro LED displays and all‑in‑one TVs built with flexible LED modules. Uniform bending radius, wide viewing angle, high‑gamut color, 1200nits brightness, and 7680 Hz refresh rate for custom curved LED video wall solutions.

Looking to bring your next display project to life? Explore our flexible MIP LED display and micro‑LED display for cinema and immersive LED display installations. Contact us today for technical specifications, pricing details, and fully customized solution options for your curved or immersive visual project.

Product Overview: 2ft by 1ft Modular Design

Key Features

 IP68 Protection for Flat and 90-Degree Angles

High Brightness (Up to 10,000 Nits) and Reliability

Flexible Screen Size Configuration

Lightweight and Labor-Efficient Installation

Common Applications

What is an IMD LED Display 2 in 1?

The 2 in 1 (2195) is a big advance in LED packaging technology. Going beyond a traditional single-unit structure, it incorporates two LED chips in one strong package. This 2-in-1 design is what makes it so special and why rental companies will appreciate how much tougher and reliable the AR Converter by N-Microwave is. ACHI-5028J 8-pin and ACHI-5030J 10-pin. Both of these deliver a direct high-performance upgrade path for manufacturers.

Difference Between IMD 4-in-1 and IMD 2-in-1

In an IMD 4-in-1 design, four LED chips are integrated into a single package. Although the specified pixel pitch may be 1.95 mm, the actual distance between the individual LEDs inside each package is smaller than 1.95 mm. This means the internal LED spacing does not fully match the pixel pitch, which can negatively affect display uniformity, grayscale performance, and overall visual consistency—especially at close viewing distances.

In contrast, IMD 2-in-1 uses two LEDs per package, and the spacing between the LEDs is consistent with the pixel pitch. For example, with a 1.95 mm pixel pitch, the distance between the LEDs is also 1.95 mm. This more uniform spacing results in better brightness balance, improved contrast, and overall superior display performance.

As a result, IMD 2-in-1 typically delivers more accurate image quality and a more refined visual experience compared to IMD 4-in-1.

Advantages of 2 in 1 IMD LED DISPLAY

Enhanced Thrust & Anti-Collision Performance

Optimized LED Height Mitigates Display Defects from Mask Warpage

Take the 2391B LED, for example. It features an overall height of 1.7 mm—0.14 mm taller than the 1.56 mm profile of standard discrete LEDs.

This extra height creates ample clearance for the side snap‑fit structure. During assembly, it avoids over‑compression of the protective mask, a common root cause of mask warpage.

By reducing the risk of mask deformation covering LED pixels, the design helps safeguard visual performance.

High-Quality Visuals, Even for the Most Demanding Applications

Durability doesn’t mean compromising on aesthetics. The t 2-in-1 LED display for clerk/splitter both use the quality PCB and material for a good quality image.

It is made of high-quality chips and patch glue, which makes it have a bright and uniform display.

In P1. 95 fine pixel pitch installations, it delivers screen brightness of over 1000 nits, meeting the demands of a variety of indoor environments, from meeting spaces to stages.

No Caterpillar issue

> When moisture enters the LED package, it can cause a short circuit at the negative electrode of the red chip, resulting in an entire column of red LEDs remaining constantly on.
>With the optimized internal structure of the 2-in-1 LED package, the negative electrodes of the red, green, and blue chips are completely separated. This design effectively prevents short circuits and eliminates the risk of abnormal constant-on LEDs caused by moisture.

Higher contrast ratio

The matte-finish design, combined with a uniform ink-color coating that is compatible with standard masks, significantly reduces reflections and delivers a vivid, professional visual effect for a wide range of commercial events.

In addition, the P1.95 pixel pitch allows a surface mask to be installed, further enhancing the contrast ratio while providing extra protection. This added layer does not complicate maintenance or repairs, ensuring both performance and practicality.

High Brightness

Durability doesn’t mean compromising on aesthetics. The t 2-in-1 LED display for clerk/splitter both use the quality PCB and material for a good quality image.

It is made of high-quality chips and patch glue, which makes it have a bright and uniform display.

In P1. 95 fine pixel pitch installations, it delivers screen brightness of over 1000 nits, meeting the demands of a variety of indoor environments, from meeting spaces to stages.

Ready to end the cycle of broken LEDs and costly repairs? Discover how the Kinglight 2195-S1 2-in-1 IMD LED can make your rental screens tougher, brighter, and far more reliable—let’s talk.

What Is a Mobius Strip?

Inspired by the mysterious Möbius strip (a surface with one side and no end), this display curves light around a continuous loop. Not like most screen around the confines of a frame:”Content will stream along these digital rivers ‘forever’ | According to a framework the popular media company has concocted. Viewing angles curve 360º around the buildingImpossible immersion that takes the audience into the story Call it a dance of geometry and light.

The Mobius Ring LED Display: Where Math Meets Magic in Immersive Visuals

First impressions count in this digital age of speed and appearances. Be it a corporate lobby, an exhibition booth, or any event venue, your front desk defines the face of your brand. This is why we are proud to introduce our newest product: the Digital LED display Counter, a curved LED desktop display that combines digital signage and practical furniture in one module.

infinite loop LED Screen:Breaking the Flat-Screen Barrier

In a time where consumers desire memorable experiences, traditional LED failed to be remarkable. This is where the Möbius Ring LED Display comes in — Mathematically elegant and designed to break down the barriers between great content and reality.

“We’re not only displaying content — we’re setting it free.”

Why Designers & Brands Are Choosing the Mobius Strip LED Display?

The “Infinity Effect”

• No seams. No dead zones. Content circulates in hypnotic fluidity

• Ideal for: Kinetic brand stories | Live visual performances | Data art

• Real impact: Luxury retail spaces using Möbius loops saw 35% sales growth (Shanghai flagship case)

360-Degree View:Every Perspective Is Perfect

• Walk around it. Peer through it. Every angle reveals the full story

• Event Application: At major concerts, 15m diameter rings let fans orbit the stage—each step unveiling new visual chapters

• Stat: 89% of attendees report “deeper emotional connection.”

Built For Reality

• Pixel perfection: P1.2 to P4 micro-pitches deliver razor clarity

• Armored tech: GOB-coated modules withstand vibration, humidity & Champagne spills

• Steel cabinets: Front-service design simplifies maintenance

Infinite loop LED Display scenario

Commercial Advertising & Brand Promotion

Transform Spaces Into Attention Magnets
The Möbius Ring LED display revolutionizes brand storytelling with its hypnotic infinite-loop visuals. Unlike static billboards:

• 360° engagement captivates crowds in high-traffic zones (malls, pedestrian plazas, commercial hubs)
• Dynamic content flow turns ads into immersive narratives
• Proven recall boost: Early adopters saw 27% higher brand recall versus traditional displays

Public Spaces & Art Installations

Where Infrastructure Becomes Art

• Convert sterile places into cultural venues:
• Sculpted presence uplifts Up your urban aesthetic in the daylight
• Transforms into a dynamically programmed mural of light art in the evenings

Events & Exhibitions

The scene shot of Mobius ring LED display in the stage show and technology exhibition is really awesome! In a theater performance it can serve as a backdrop or prop that offers the actors a chilled performance space.

The view on the screen can change along with the pounding rhythm of music and the unfolding story to make the audience feel they are in a world filled with fantasy and romance.

Ready to Redefine Reality?

Whether you’re
• Designing a stage that immerses the audience completely
• Turning storefronts into unforgettable brand worlds
• Bringing public spaces to life with motion and light

The Möbius Ring goes beyond screens—transforming them into powerful experience engines.

How to install indoor led wall

1. Preparations

1.1. Unpacking

Warning: To prevent damage to the LED panel, wear anti-static gloves before installing/touching the display. After unpacking, do not place the display vertically on the floor, an accident such as a fall may be caused.

LED Module: 250×250mm. One receiving card per layer (both sides). Total 6 LED modules for Side A & B.

DNA Rotating LED Display Motor Controller Connection Diagram

IP Controllers: Preconfigured

1. Port Setup
   • 8 preconfigured ports (1–8), factory-assigned to devices No. 1–8.
2. Wiring Rules
   • Connect each port only to its matching device (e.g., Port 1 → Device 1).
   • No cross-connections to avoid signal issues or equipment damage.

Servo Motor Controller Default IP & PC Setup

2. Structure Installation

Precautions when handling the cabinets:

• Do not drop or apply shock/vibration to the product. Strong impacts may damage the component inside.

• Only a qualified service technician should perform the installation.

• Only use approved cabinets. • Be careful not to damage the corners of the cabinet.

• Install the display in a well-ventilated area.

• Always wear anti-static gloves when touching the display.

• Provide air conditioning around the LED display to allow heat dissipation away from the display.

• To maintain proper ventilation, keep clear space from the mounted displays to the wall. Installing the product in poorly ventilated spaces may damage the LED.

Wall Mount Kits

A wall mount kit is made of aluminum profile 40x40mm (in some regions sold separately or available from third party vendors) allows you to mount the LED display on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Wall mounting can only be performed from the front side of cabinets.

2. Insert the connection plate on the structure, and use the Allen screw bolt to connect the cage nuts.

4. Install led modules (follow the arrow direction of the modules)

3. Cabinet installation

Step 1. Use a gradienter to adjust the flatness and verticality and then secure the cabinet to the connectors on the rack frames. Use connection plates to fix the screen. Start your installation from the bottom row. Install the connecting plates on the bracket (Fig 1). Rotate the hex key clockwise until the screw bolts are inserted, and fasten the fast locker on between two cabinets (left to right, up to down)(Fig2.) ※Do not fix the screws between the connectors and cabinets too tight for future adjustment.

4. Power and Signal Wiring

The data wiring process must follow a zigzag order between the cabinets, always starting from the one located at the bottom left. The modules are then connected to the data in and data out ports. Thanks to our system software we can verify the correct wiring of the entire screen with simple tests. Finally follows the color calibration and brightness setting.

 5. LED Modules installation.

After check all the cabinets are well installed, attach the led modules to the cabinet, please check the arrow on the back of the PCB and follow the direction, and connect the flat cable and power cable from the hub to each of the modules. tips: to check the status of each led module on the cabinet, you can use one spare cabinet to test the condition of the led modules by pressing the test button on the hub.

Modular Cabinet 320x480mm Installation

In most LED modules, the Louver (also called masks) is the final installed component. This louver structure, fixed after the basic assembly of the module, is critical for measuring the off-state brightness performance.

Less direct sunlight reflection correlates with higher overall contrast. Outdoor installations are exposed to sunlight for most of the day, necessitating rigorous louver design to ensure optimal display performance. The design process requires balancing contrast and viewing angles

LED display louver : improves performance and life.

• Full Protection
• The high led modules mask can protect LED lamp beads from dust, water, and other debris as a bodyguard of your display.
• Anti-Glare Design
• Special coatings greatly reduce on-screen reflections, making it easy to enjoy in bright outdoor conditions.
• Weather Resistance
• Constructed from waterproof and protective materials, the mask allows users to use their display in outdoor conditions ranging from heavy rain to bright sunshine.

Enhanced Visual Quality

 A matte surface scatters ambient light via diffuse reflection, resulting in a darker off-state and improved contrast uniformity across viewing angles. In contrast, a polished coating appears dimmer at the light incident angle, theoretically offering higher contrast, but causes severe glare at reflection angles, impairing side-angle viewing

Matte surfaces on louvers are typically achieved through coating processes. Most manufacturers apply anti-reflective, UV-resistant black paint to minimize light reflection

High Louver vs low Louver

Rock Series Features:

• Die-cast aluminum cabinet and full aluminum-shell LED modules for superior heat dissipation.

• Ultra-high brightness up to 10,000 nits, ensuring excellent visibility even under direct sunlight.

• Front and rear service design for easy maintenance and flexible installation.

• Extended louver design enhances contrast and image clarity.

• Breather valve system improves stability and ensures long-term reliable operation.
